Low Humidity Is a Hardware Risk. The Wrong Humidifier Makes It Worse.
Below 40% RH, electrostatic discharge (ESD) events become frequent enough to damage or degrade server components, storage arrays, and networking hardware. A single ESD event can cause latent failure in semiconductor devices, the kind that doesn’t show up immediately but shortens hardware life and creates unpredictable failure events downstream.
The typical fix is humidification. The typical mistake is putting untreated water into an ultrasonic humidifier.
Tap water and even lightly filtered water carry dissolved minerals. Inside an ultrasonic transducer, those minerals atomize and become airborne particulate. That white dust settles on circuit boards, server racks, and precision hardware. In a data center, that isn’t a cleaning problem. It’s a contamination problem with direct consequences for hardware reliability and uptime.
Humidity Delivered Clean, from Water Source to Air
UltraPure integrates RODI (Reverse Osmosis Deionization) water purification with industrial ultrasonic humidification into a single, engineered system. RODI strips the water to near-zero TDS before it reaches the humidifier. What enters the air is clean moisture, not mineralized particulate.
No White Dust. No Particulate Contamination. No Compromised Hardware.
RODI-purified water atomizes clean. Zero total dissolved solids means nothing is left airborne to settle on servers, racks, or switching equipment. Your hardware environment stays as clean after years of operation as it was on day one.
ASHRAE-Compliant RH Maintained Without Overshoot or Hunting
ASHRAE guidelines recommend 40-60% RH for data center environments. UltraPure ultrasonic humidifiers use proportional control with dynamic proportional adjustment, modulating output in real time to tightly hold setpoints under fluctuating thermal and load conditions. No overcorrection. No condensation risk.
93-95% More Efficient Than Steam, at a Fraction of the Operating Cost
Steam-based humidification requires energy to boil water continuously and introduces a heat load that works against your cooling infrastructure. Ultrasonic humidification operates at ambient temperature, produces no heat byproduct, and is documented at 93-95% greater energy efficiency than steam alternatives. Over the service life of a data center installation, the operational savings are significant.
From Feed Water to Compliant RH: How the System Works
Step 1: Water Purification
Feed water enters the UltraPure RODI system. Multi-stage reverse osmosis and deionization remove dissolved minerals, chlorine, particulates, and biological contaminants. The output water reaches near-zero TDS, the quality threshold required to protect ultrasonic transducers and eliminate mineral buildup.

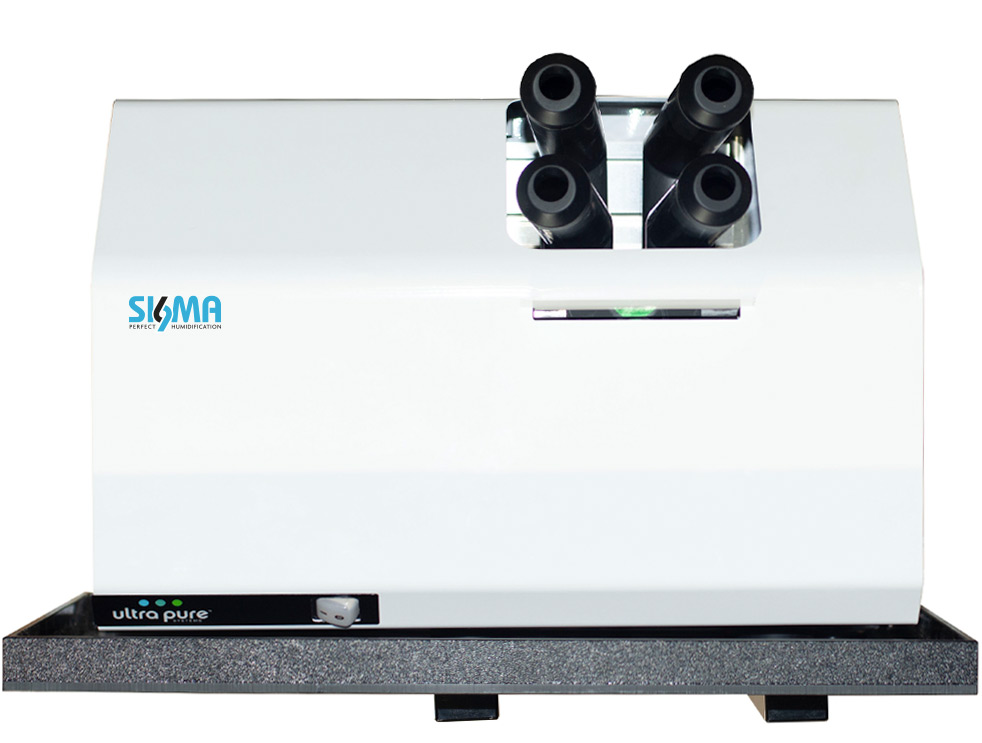

Step 2: Ultrasonic Atomization
Purified water feeds directly to the industrial ultrasonic humidifier. High-frequency transducers convert water into a fine, clean mist at ambient temperature: no heat, no steam, no thermal load added to the space.
Step 3: Proportional Humidity Control
Variable-speed fans and proportional-control logic regulate humidifier output in real time. Dynamic proportional control responds to load changes and ambient fluctuations to maintain target RH within tight tolerances, consistent with ASHRAE A1 and A2 class environment specifications.
Step 4: Sustained Operation with Minimal Intervention
Once the system is commissioned, it runs. No mineral accumulation fouling transducers. No white dust requiring periodic equipment cleaning. No steam system descaling. Replacement filters are cataloged by system model, so maintenance scheduling is straightforward.
Systems Scaled for Micro Data Centers Through Enterprise and Colocation Facilities
UltraPure RODI cabinets range from 75 GPD to 7,500 GPD. Humidifier capacity is sized to space volume, target RH setpoint, and thermal load. Whether you’re specifying a single-room edge computing deployment or a multi-zone enterprise facility, the system is matched to the load rather than adapted from an undersized or oversized unit.
What you get:
- RODI purification matched to humidifier flow demand
- Patented cabinet design: compact, wall-mounted, field-serviceable (US D780,884 S / US D780,885 S)
- Variable speed fan humidifiers with proportional and dynamic proportional control
- Direct wall-mount installation, no external control box required
- Single-point water connections for simplified rough-in
- Replacement filters categorized by system model (no cross-referencing required)
- Made in the USA
Why Ultrasonic Has Replaced Steam as the Standard for Data Center Humidification
Steam humidification requires continuous energy input to maintain boiling temperature, adds heat to an environment already under significant thermal management pressure, and demands regular descaling and maintenance. For a space where uptime is the primary KPI, a humidification system with high maintenance requirements is a liability.
Ultrasonic humidification operates at ambient temperature with no heat byproduct, so it doesn’t add a thermal load that your CRAC or CRAH units have to compensate for. Efficiency is 93-95% better than steam. Maintenance is reduced to periodic filter replacement at scheduled intervals.
The remaining historical objection to ultrasonic technology was white dust contamination from mineral-laden water. RODI purification removes that risk entirely. The combination of RODI and ultrasonic humidification resolves every practical objection to the deployment of ultrasonic systems in critical environments.
Common Questions from Data Center Engineers
Q: What water quality is required to protect ultrasonic transducers?
A: Near-zero TDS is the target. Standard municipal water, even after sediment filtration, typically measures 150-500 ppm TDS. Tap water at those levels will foul transducers over time and produce white dust contamination. Our RODI systems output water below 5 ppm TDS, which is the threshold that eliminates both failure modes.
Q: Does ultrasonic humidification add heat load to the data center?
A: No. Ultrasonic humidification operates at ambient temperature through high-frequency atomization. It does not boil water and produces no heat byproduct. Steam humidification introduces heat; ultrasonic does not.
Q: How does the system maintain ASHRAE-compliant RH setpoints?
A: Proportional control with dynamic proportional adjustment modulates humidifier output in real time based on sensor feedback. The system responds to load changes, seasonal ambient shifts, and thermal fluctuations without manual recalibration.
Q: What is the installation footprint?
A: RODI cabinets are wall-mounted and compact. Humidifiers mount to the wall with direct duct connection or open-space discharge options. Single-point water connections simplify rough-in and reduce potential leak points versus multi-connection systems.
Q: Can the system support multi-zone data center deployments?
A: Yes. Systems are specifiable for single-room deployments or distributed across multiple zones with individual humidity control per zone. Contact us with your facility layout, and we will size accordingly.
Q: What does the maintenance schedule look like?
A: Scheduled filter replacement (sets are cataloged by system model, no compatibility guesswork) and annual transducer inspection. No descaling. No mineral accumulation management. No steam system boiler maintenance.
Ready to Spec the System?
Send us your facility type, square footage, target RH setpoint, and water source. We will put together a system recommendation with sizing and lead time. Call (800) 729-5192, or submit your project details below.
